2021 Ram ProMaster 3500 159"WB High Roof Model Pack

2021 Ram ProMaster 3500 159"WB High Roof Model Pack

C$1,750.00Price

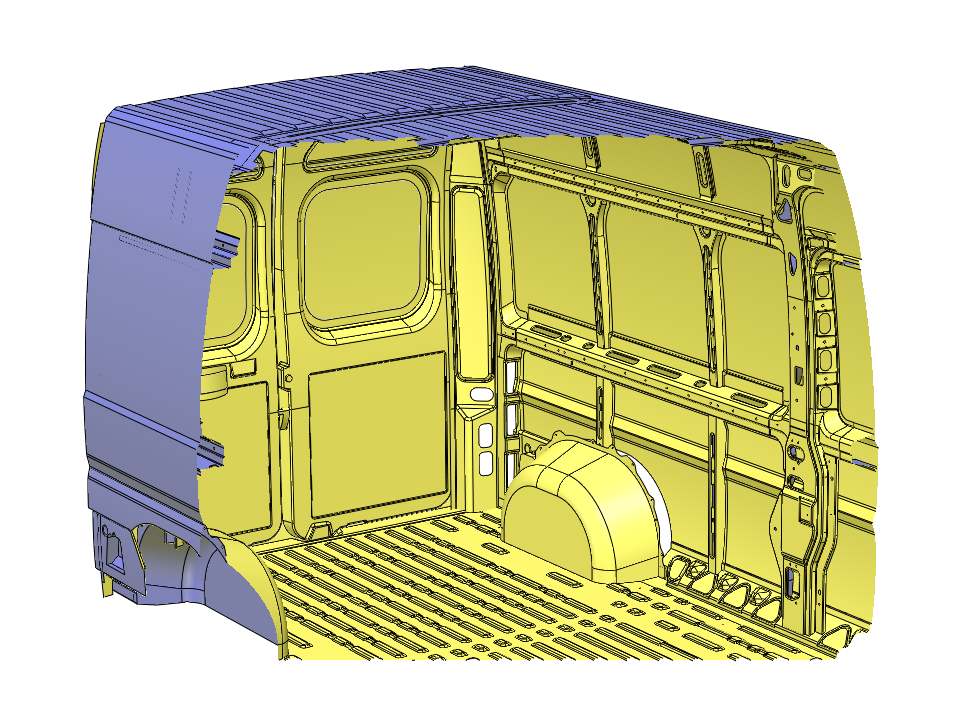

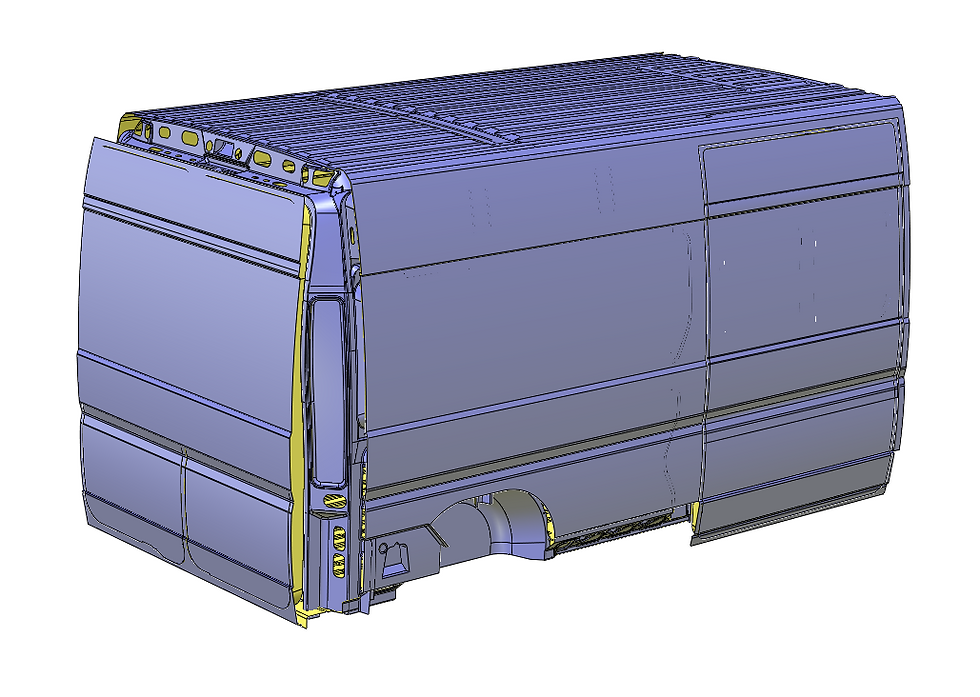

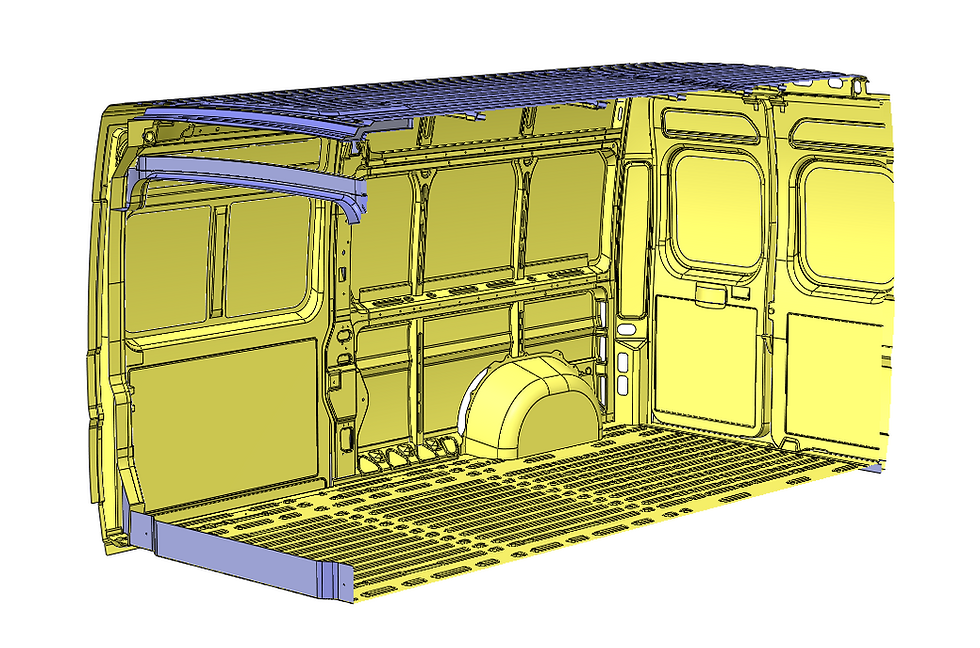

Scan data and STEP model for the North American manufactured 2021 Ram Promaster 3500 159"WB High Roof. Scan data coverage includes the complete interior and exterior body. CAD data (STEP surfaces) is limited to the rear cargo area. Scan files include high- and low-resolution meshes (STL) of the body and doors and are segmented and aligned for convenience. The STEP model file is created in an as-built manner from the scan data and includes most major surfaces and features required for upfitters to design components.

The CAD modeled area is simplified to only the major features. Rapid3D recommends utilizing the included mesh file for fine details such as the location of factory mounting holes. This is an as-built model utilizing Rapid3D acquired 3D scan data and Rapid3D makes no guarantee on the accuracy of the model compared to vehicles other than the one scanned.

The Sprinter is one of the most common vehicles for overland adventure camper conversions, and this scan data allows upfitters to fully utilize the available space, and minimize conversion time by eliminating manual measurements. The spare tire area provides design options for under-mounted storage and tanks.

Additional modeling can be completed at additional cost.

  • The scan data covers the entire interior and exterior body, while the CAD data (STEP surfaces) is limited to the rear interior cargo area. The scan files are segmented and aligned, and include both high- and low-resolution meshes (STL) for the body and doors. The STEP model file is built from the scan data and includes most major surfaces and features.



    The CAD modeled area is simplified, focusing only on the major features. Rapid3D recommends using the included mesh file for fine details. This is an as-built model using 3D scan data acquired by Rapid3D. However, please note that Rapid3D cannot guarantee the accuracy of the model for vehicles other than the one that was scanned.



    In order to avoid potential issues, we highly recommend that you confirm that you have the necessary capabilities to work with the files before making any commitments to purchase our packages. It's important to ensure that you have the appropriate software and hardware required to effectively utilize the files to their fullest potential. Kindly note that once the files have been delivered, all sales will be final and no refunds will be issued.


    You can find the Scan Files along with further details on how to work with them HERE
